PERSONALIZE YOUR REVOLUTION

Why Revolution Mix Is different ?

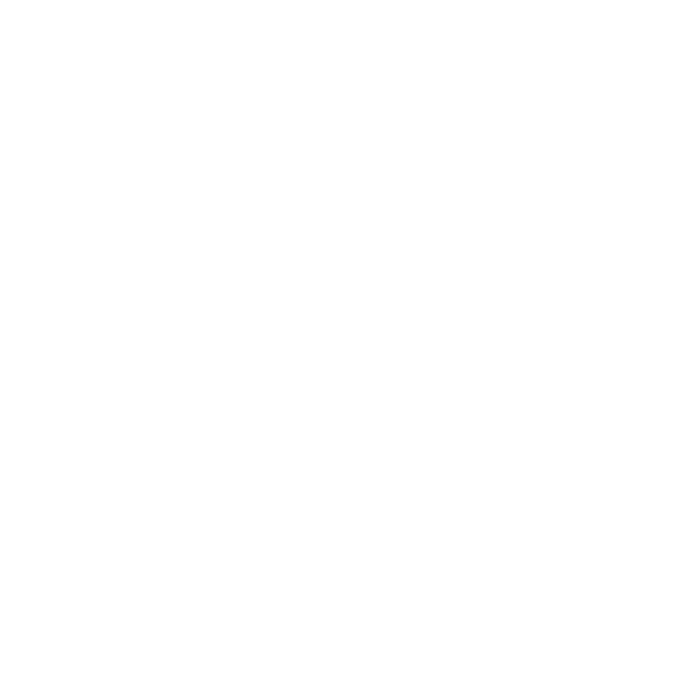

4r
Another important novelty regards the leg loops, that are drop-shaped to allow for improved range of motion.

The innovative heart of this harness is constituted by the two central tie-in rings. These are gated, made of a light aluminium alloy, and connect the harness webbing in two points, are both certified 15 kN, in compliance with EN 12277:2015 + A1:2018 regulations.

The upper tie-in point is the same length as on the Canyon.Zero model, leaving the left-right range of motion of the descender unvaried. The lower tie-in point, made of fabric webbing, is the lowest positioned in this class of harness, thus optimizing the positioning of the chest ascender and the safety lanyard.

Why two rings?

  • The waistband-leg loop connection straps are not fixed, and are therefore free to slide and reposition based on the ergonomics and the movements of the user during both horizontal and vertical progression through the canyon.
  • In case of a fall from above, the two tie-in points, being mobile, will position themselves automatically based on the natural direction that the braking force exerts on the harness system. Thanks to the mobility of the tie-in point/waistband/leg loop system, the braking force will impact the user’s body in the best way possible.
  • The two tie-in points are protected by a tubular web made of HT polyester, which may also be removed and replaced as required, directly by the user.
  • The chest ascender and the lanyard may be connected directly onto the lower tie-in point, with or without any accessories.

1

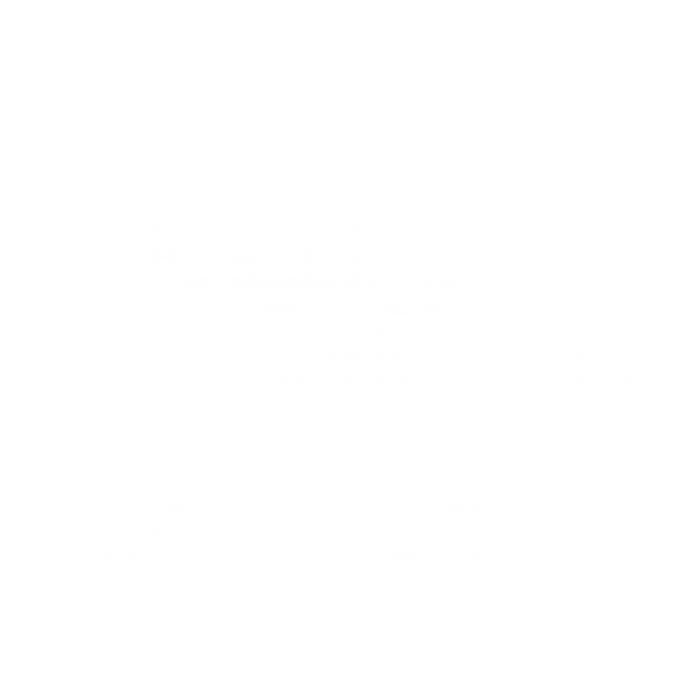

3r

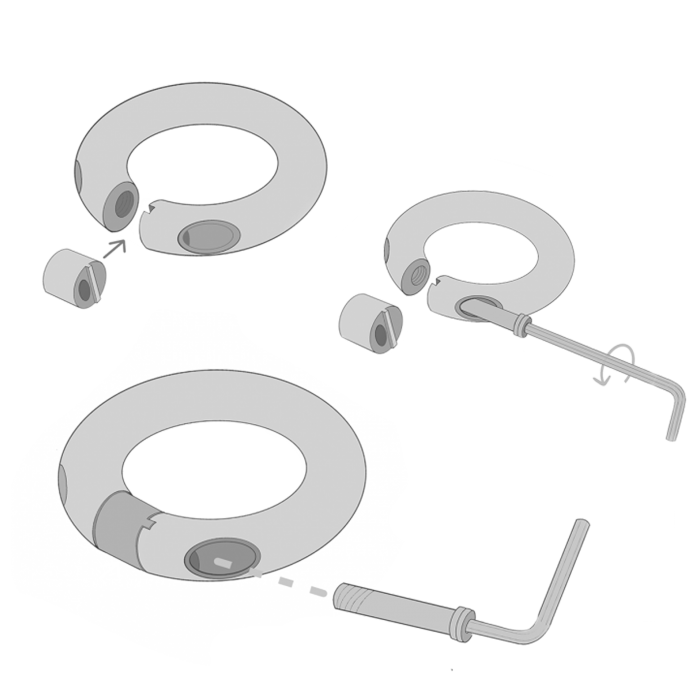

As the two rings are gated and can be opened, in case of wear or tears, the two tie-in points and the belt and leg loop webbing may all be replaced directly by the user, by purchasing specific spare parts and without having to dispose of the entire harness or having to send it back to the manufacturer for parts replacement.

gear loops

The gear loops are removable and may be easily positioned in three different configurations, based on the size and habits of the user.

The two bronze rings on the sides of the harness may be used to hang the pack/kit boule while abseiling or to carry the descender (when not in use) while walking.

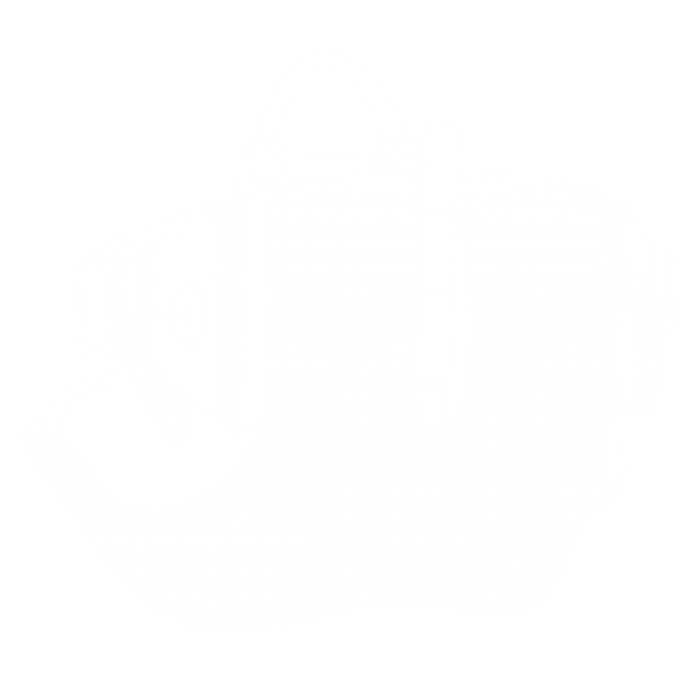

2r
